How Do Child-Resistant Cartridge Boxes Work? Design & Testing Guide
When choosing a child-resistant cartridge box, many brands focus first on the locking mechanism.
But a reliable packaging structure involves more than a button.
The opening experience, drawer movement, insert fit, assembly method, and structural consistency all influence how the finished box performs.
This guide explains how push-button child-resistant cartridge boxes work and what to consider before production.

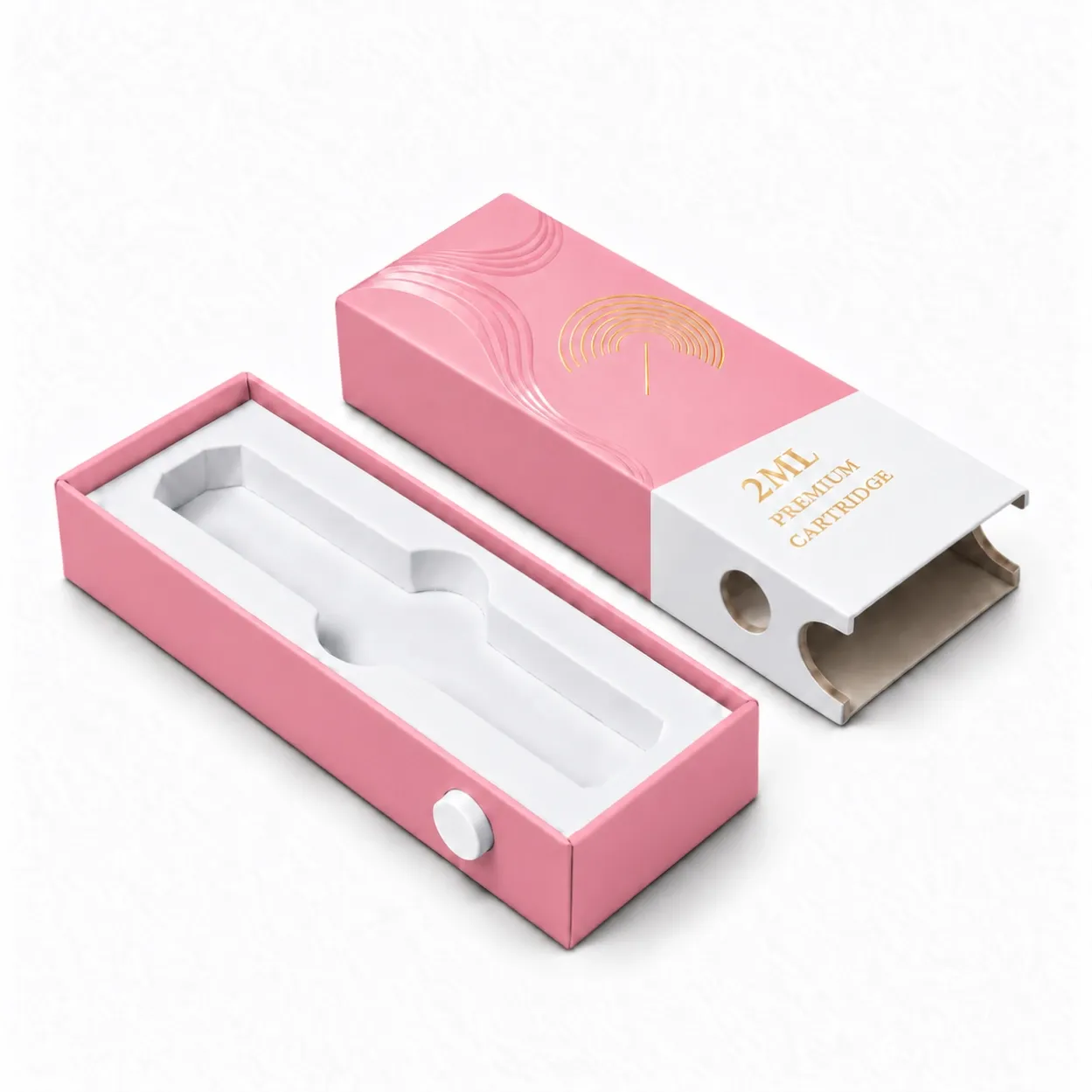

1. Understanding the Push-Button Drawer Structure
A typical push-button drawer box includes:
- An outer paperboard sleeve
- An inner sliding tray
- A mechanical locking feature
- A custom product insert
The locking mechanism is designed to prevent the inner tray from opening through a simple pulling action. Users must follow the intended opening sequence to release the drawer. The exact mechanism and opening method depend on the approved structure.
2. Why Button Placement Matters
A button that looks good in a rendering may not always provide a comfortable opening experience. Its location can affect accessibility, hand positioning, and drawer movement.
During structural development, consider:
- Button position and size
- Opening resistance
- Lock engagement
- Drawer clearance
- Repeated opening performance
- Product and insert clearance
These details should be reviewed using physical samples.
3. The Importance of a Custom Insert
For 1ML and 2ML products, an insert helps hold the product in position. Because external product dimensions vary, the insert should be designed around the actual housing, mouthpiece, and accessories.
A poorly fitting insert may make the product difficult to remove or allow unnecessary movement.
4. Why Experienced ODM Design Matters
Developing a functional box requires balancing appearance, opening experience, production feasibility, and cost. At Starway Pack, our packaging design team has over 10 years of experience helping brands develop custom structures. We consider not only how the box looks, but also:
- How customers open it: Is the opening action consistent and practical?
- How the product fits: Is the insert correctly sized?
- How workers pack it: Can assembly and product insertion be simplified?
- How the boxes ship: Can carton packing be optimized without compromising the structure?
- How it is manufactured: Are the folds, locking features, and finishing processes suitable for production?
These considerations can help avoid problems that may not be obvious in a digital mockup.
5. Can You Customize the Button or Box Shape?
Yes, selected structural details can be customized. Brands may request changes to:
- Outer sleeve dimensions
- Button position
- Selected button details
- Inner tray dimensions
- Insert shape
- Printed graphics
- Surface finishes
However, changes to a locking structure may affect tooling, functional performance, or certification requirements. Any revised structure should be evaluated before mass production.
6. Are All Push-Button Boxes Certified Child-Resistant?
No. A mechanical locking feature does not automatically establish regulatory compliance. Applicable requirements depend on the product and market. Where child-resistant packaging is required, the finished packaging must be evaluated against the relevant standards. Brands should discuss certification and testing requirements with their supplier before production.
7. What Should You Check Before Bulk Production?
Review a physical sample for:
- Product fit
- Insert positioning
- Button operation
- Drawer movement
- Lock engagement
- Repeated opening performance
- Printed appearance
- Assembly and packing steps
A sample review helps identify design issues before the full production run.
8. What Should You Send Your Supplier?
For a custom project, provide:
- Product dimensions
- Product capacity and model
- Preferred box structure
- Existing reference packaging, if available
- Quantity per design
- Artwork
- Target market
- Any testing requirements
Even a rough sketch can help communicate your idea.
Frequently Asked Questions
Can a 1ML and 2ML product share the same CR box?
Possibly, if their dimensions are compatible. Different inserts may be required.
Can the button shape be changed?
Selected changes may be possible, subject to engineering review and any necessary retesting.
Why is a physical sample important?
A physical sample allows you to evaluate actual opening behavior, product fit, and structural performance.
Can ODM design help reduce total packaging cost?
It may. Efficient assembly, suitable inserts, and optimized shipping arrangements can reduce certain downstream costs.
